BT_BitmapSaveFile

[andyglezl]

Hola a todos

Estoy utilizando la BosTaurus para para cargar una imagen, dibujar algo sobre ella y guardarla en archivo.
Pero al utilizar BT_BitmapSaveFile(hBitmap, cFileName, nTypePicture) me guarda solo la imagen,
no lo que haya "dibujado" sobre ella.
Alguna idea ? Dr. Claudio ?
Gracias
-----------------------------------------------------------------------------------------------------------------
Hello everyone

I am using BosTaurus to to load an image, draw something on it and save it to file.
But using BT_BitmapSaveFile (hBitmap, cFileName, nTypePicture) I just saved the image,
not what is "drawn" on it.
Any idea? Dr. Claudio?
thanks

[esgici]

I am using BosTaurus to to load an image, draw something on it and save it to file.
But using BT_BitmapSaveFile (hBitmap, cFileName, nTypePicture) I just saved the image,
not what is "drawn" on it.

Hola Andres

BosTaurus has a ton of "draw" functions, such as :

• BT_DrawLine()
  BT_DrawRectangle()
  BT_DrawEllipse()
  BT_DrawFillRectangle()
  ...

More, <hmg>\hfcl\Samples\BosTaurus\demo07\ is about draw functions

Happy HMG'ing

[andyglezl]

Gracias esgici, lo se, pero lo que quiero es guardar en un archivo la imagen

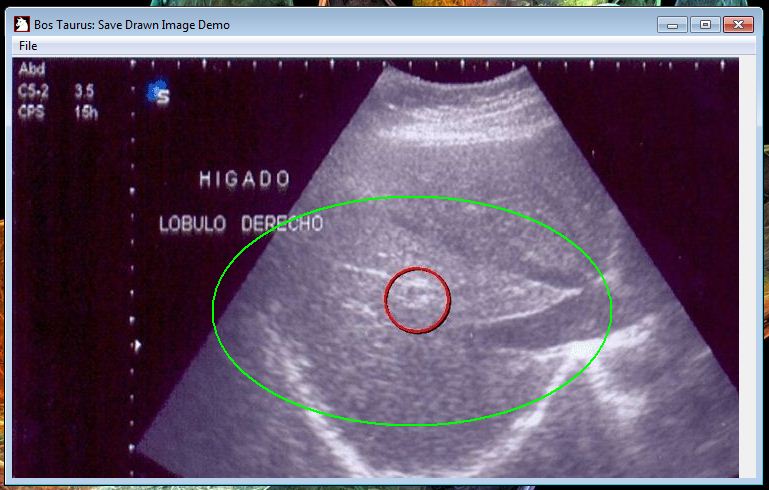

ya modificada con lo que haya dibujado sobre ella, en este caso, el circulo rojo
como aparece en la imagen arriba.
Y al guardar con la funcion, BT_BitmapSaveFile(hBitmap, cFileName, nTypePicture,
me guarda solo la imagen que cargué, pero no el circulo rojo.
-----------------------------------------------------------------------------------------------------
Thanks Esgici, I know, but what I want is to save the image to a file
modified and what you draw on it, in this case, the red circle
as shown in the image above.
And to keep with the function, BT_BitmapSaveFile (hBitmap, cFileName, nTypePicture
I keep only the image I uploaded, but not the red circle.

[srvet_claudio]

Andrés,
espero que este ejemplo te sea de ayuda.

Code: Select all

PROCEDURE Draw_in_image
LOCAL hBitmap
LOCAL hDC, BTstruct

   hBitmap := BT_BitmapLoadFile ("Image1.jpg")

   hDC := BT_CreateDC (hBitmap, BT_HDC_BITMAP, @BTstruct)
       BT_DrawEllipse (hDC, 140, 200, 400, 230, RED, 5)   // Draw in image
   //  BT_Draw... ()                                      // Others draws functions
   BT_DeleteDC (BTstruct)

   BT_BitmapSaveFile (hBitmap, "Image1.jpg", BT_FILEFORMAT_JPG)
   BT_BitmapRelease (hBitmap)
RETURN

[esgici]

I know, but what I want is to save the image to a file
modified and what you draw on it, ...
And to keep with the function, BT_BitmapSaveFile (hBitmap, cFileName, nTypePicture
I keep only the image I uploaded, but not the red circle.

Hola Andres

I know, you are knowing everything you need;

Nevertheless, look at once my humble work too :

Exploring Bostaurus, Save drawn image


BTExpl_SD.zip

Exploring Bostaurus, Save drawn image

(46.93 KiB) Downloaded 181 times

Happy HMG'ing

[andyglezl]

Creo que ya vi cual es el detalle, yo estaba usando
Win1.Capture( cArch, 000 , 000 , BT_ClientAreaWidth("Win1") , BT_ClientAreaHeight("Win1") )
y si me guardaba todo lo que habia dibujado.

Pero ahora estoy cargando imagenes a su tamaño real para que se vean mejor, (con VIRTUAL WIDTH xxx VIRTUAL HEIGHT xxx),
recorro con las barras de Scroll hacia el lugar que quiero ver y señalo algun punto en la imagen.
Crei que con BT_BitmapSaveFile (hBitmap, cFileName, nTypePicture), me salvaria toda la imagen que cargue en hDC mas lo dibujado.
(y claro, solo me guardaba la imagen) Ahora me doy cuenta que tengo que capturar lo que se muestra en pantalla y guardarlo a archivo,
que no puedo guardar todo lo que tengo en la ventana virtual.
------------------------------------------------------------------------------------------------------------------------
I think I saw what the detail, I was using
Win1.Capture (Carch, 000, 000, BT_ClientAreaWidth ("Win1"), BT_ClientAreaHeight ("Win1"))
and if he saved all that was drawn.

But now I'm loading images at actual size to make them look better, (with VIRTUAL VIRTUAL HEIGHT WIDTH xxx xxx)
I walk with scroll bars to the place you want to see and point out some point in the image.
I thought that BT_BitmapSaveFile (hBitmap, cFileName, nTypePicture) , I would save the entire image to load in hDC with what I had drawn.
(and of course, just saved the image) Now I realize that I have to capture what is displayed on the screen and save it to file, I can not save
all I have in the virtual window.

[serge_girard]

Hello,


When I 'drop' a drawing on the picture it seems OK but when the window/form is minimized and opened again my draw has disappeared Almost like an UNDO...

Any idea how to make it mot disappear?

Thx, Serge

[esgici]

Hi Serge

When I 'drop' a drawing on the picture it seems OK but when the window/form is minimized and opened again my draw has disappeared Almost like an UNDO...

Any idea how to make it mot disappear?

What drawing you are about;

DRAW ... commands or Bos Taurus ?

And please a SSW if possible.

Regards

[serge_girard]

Esgici,

Try this code. Select a drawing and place in somewhere in the picture. Then minimize the window and then reopen and your selected drawing has gone.

Code: Select all

*******************************************************************************
* PROGRAMA: Demo ON PAINT event
* LENGUAJE: HMG
* FECHA:    Setiembre 2012
* AUTOR:    Dr. CLAUDIO SOTO
* PAIS:     URUGUAY
* E-MAIL:   srvet@adinet.com.uy
* BLOG:     http://srvet.blogspot.com" onclick="window.open(this.href);return false;
*******************************************************************************


#include "hmg.ch"
#include "hfcl.ch"

#DEFINE SILVER {	192,192,192 }



FUNCTION MAIN
/**************/
PUBLIC hBitmap		:= 0
PUBLIC lCopy1		:= .f.
PUBLIC lCopy2		:= .f.
PUBLIC lCopy3		:= .f.
PUBLIC lCopy4		:= .f.
PUBLIC hDC
PUBLIC BTstruct


DEFINE WINDOW Win1;
	AT 0,0;
	WIDTH  960;
	HEIGHT 780;
	TITLE "Bos Taurus: Save Drawn Image Demo";
	BACKCOLOR SILVER;
	MAIN;
	ICON "BT_Icon" ;
	ON INIT     Proc_ON_INIT ();
	ON RELEASE  Proc_ON_RELEASE ();
	ON PAINT    Proc_ON_PAINT () ;
	ON MOUSECLICK Draw_Figure();
   ON MOUSEDRAG  Mouse_Drag();
   ON MOUSEMOVE  Mouse_Position()

ON KEY ESCAPE ACTION ThisWindow.Release

	@  0,00   FRAME Frame_1  ;
	WIDTH  90 ;
	HEIGHT 90


	@  100,00 FRAME Frame_2 ;
	WIDTH  90 ;
	HEIGHT 90


	@  200,00 FRAME Frame_3 ;
	WIDTH  90 ;
	HEIGHT 90




	@ 500,10 LABEL Label_1 ;
      VALUE " " ;
		WIDTH 140 ;
		HEIGHT 20 ;
		FONT 'Arial' SIZE 10 ;
      FONTCOLOR RED BOLD ;
		BACKCOLOR SILVER;

	@ 530,10 LABEL Label_2 ;
      VALUE " " ;
		WIDTH 140 ;
		HEIGHT 20 ;
		FONT 'Arial' SIZE 10 ;
      FONTCOLOR GREEN BOLD ;
		BACKCOLOR SILVER;

	@ 560,10 LABEL Label_3 ;
      VALUE " " ;
		WIDTH 140 ;
		HEIGHT 20 ;
		FONT 'Arial' SIZE 10 ;
      FONTCOLOR ORANGE BOLD ;
		BACKCOLOR SILVER;


	DEFINE MAIN MENU
		DEFINE POPUP "File"
			MENUITEM "Save" ACTION SaveImage()
		END POPUP
	END MENU


	DEFINE STATUSBAR
		STATUSITEM ""  WIDTH 600
		STATUSITEM ""	WIDTH 100
		STATUSITEM ""	WIDTH 100
	END STATUSBAR
END WINDOW

CENTER WINDOW Win1
ACTIVATE WINDOW Win1

RETURN Nil







FUNCTION Draw_Figure()
/*********************/

nMouse_Col	:= _HMG_SYSDATA [ 192 ]
nMouse_Row	:= _HMG_SYSDATA [ 191 ]


IF nMouse_Row <= 90 .AND. nMouse_Col <= 90
	lCopy1		:= .t.
ENDIF

IF nMouse_Row >= 100 .AND. nMouse_Row <= 190 .AND. nMouse_Col <= 90
	lCopy2		:= .t.
ENDIF

IF nMouse_Row >= 190 .AND. nMouse_Row <= 290 .AND. nMouse_Col <= 90
	lCopy3		:= .t.
ENDIF


IF	lCopy1 .OR. lCopy2 .OR. lCopy3
	IF nMouse_Row >= 10 .and. nMouse_Row <= 480  .AND. nMouse_Col >= 100  .AND. nMouse_Col <= 840	// op de foto
		IF	lCopy1
			BT_DrawEllipse (hDC, nMouse_Row-15, nMouse_Col-15, 30, 30, RED, 1)
			SetProperty('Win1','Label_1', 'Value', ALLTRIM(STR(nMouse_Row)) + ' ' + 	ALLTRIM(STR(nMouse_Col)) )
			lCopy1		:= .F.
		ENDIF

		IF	lCopy2
			BT_DrawEllipse (hDC, nMouse_Row-15, nMouse_Col-15, 30, 30, GREEN, 1)
			SetProperty('Win1','Label_2', 'Value', ALLTRIM(STR(nMouse_Row)) + ' ' + 	ALLTRIM(STR(nMouse_Col)) )
			lCopy2		:= .F.
		ENDIF

		IF	lCopy3
			BT_DrawEllipse (hDC, nMouse_Row-30, nMouse_Col-30, 60, 60, ORANGE, 1)
			SetProperty('Win1','Label_3', 'Value', ALLTRIM(STR(nMouse_Row)) + ' ' + 	ALLTRIM(STR(nMouse_Col)) )
			lCopy3		:= .F.
		ENDIF

	ENDIF
ENDIF


RETURN





FUNCTION Mouse_Drag()
/*********************/
RETURN




FUNCTION Mouse_Position()
/***********************/
Win1.StatusBar.Item( 2 ) := "Row : " + LTRIM( STR( _HMG_SYSDATA [ 191 ] )) // Mouse Row
Win1.StatusBar.Item( 3 ) := "Col : " + LTRIM( STR( _HMG_SYSDATA [ 192 ] )) // Mouse Col
RETURN




PROCEDURE Proc_ON_INIT
/*********************/
hBitmap	:= BT_BitmapLoadFile( "imagen.JPG" )
RETURN





PROCEDURE Proc_ON_RELEASE
/************************/
BT_BitmapRelease( hBitmap )
RETURN






PROCEDURE Proc_ON_PAINT
/*********************/
hDC := BT_CreateDC ("Win1", BT_HDC_INVALIDCLIENTAREA, @BTstruct)
BT_DrawBitmap  (hDC, 10, 100, 740, 480, BT_COPY, hBitmap)
BT_DrawEllipse (hDC, 28,  27, 30, 30, RED, 1)
BT_DrawEllipse (hDC, 128, 27, 30, 30, GREEN, 1)
BT_DrawEllipse (hDC, 217, 15, 60, 60, ORANGE, 1)
BT_DrawLine    (hDC, 345, 5,  345, 80, ORANGE, 2)
//BT_DeleteDC (BTstruct)
RETURN





PROCEDURE SaveImage()
/*********************/
LOCAL hBitmap		:= BT_BitmapCaptureClientArea("Win1",10, 100, 740, 480)
LOCAL cImgFNam2	:= "SaveImage.jpg"

BT_BitmapSaveFile( hBitmap, cImgFNam2, 2 )

MsgInfo( "Saved AS SaveImage.jpg" )

RETURN



[esgici]

OK Serge, I'll probe it.

Happy HMG'ing
